🔩 Thread Hole Location Gage

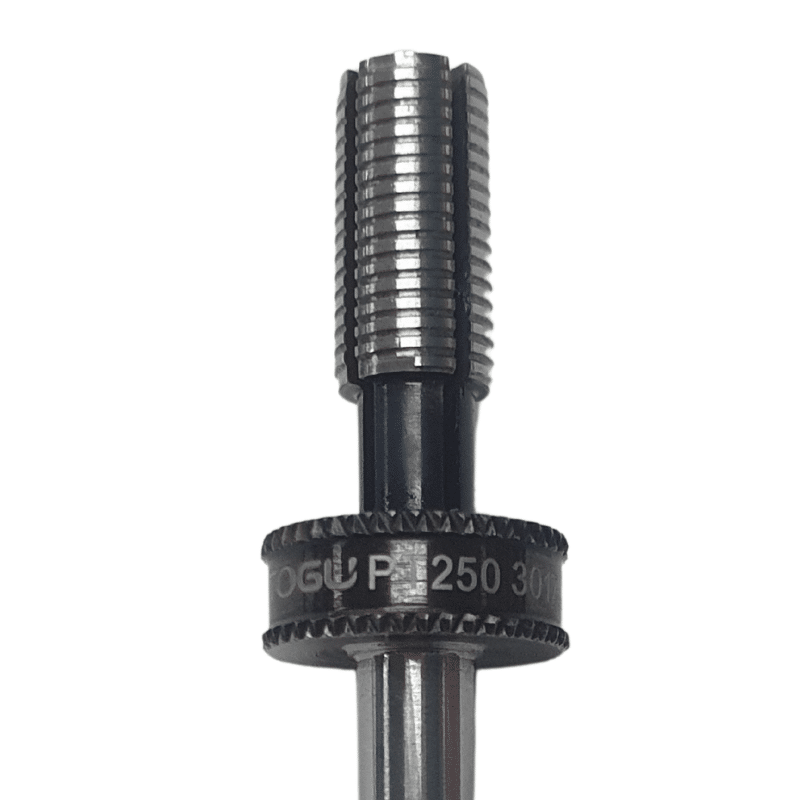

Thread Hole Location Gages are used to verify the precise position of threaded holes in components. Also known as center-to-center hole location plugs, these gages are designed to measure the actual center-to-center distance between threaded holes.
The flexible plug design features a 90° notch, ensuring accurate positioning at the thread crest regardless of hole size.
🛠️ What Is It Used For?
-
To verify whether a threaded hole has been machined to standard specifications (e.g., ISO, JIS, etc.)
-
Commonly used in high-precision industries such as:
-
Automotive manufacturing
-
Aerospace
-
Medical device production
-
✅ Key Benefits
-
Highly Accurate Thread Position Inspection
Ensures that each threaded hole is located exactly where it should be. -
Reduces Assembly Errors
Correct hole positioning leads to better part alignment and fewer reworks. -
Faster Inspection Times
Allows quick, efficient checking compared to traditional metrology equipment. -
Ideal for On-Site Quality Control (QC)
Can be used directly in production environments without complex setup. -
Customizable for Specific Applications
Can be designed to suit unique part geometries and multiple hole layouts. -
Durable and Easy to Use
Built with robust materials for long-lasting use and simple handling.
PROTOOL, distributor of TOGU brand in Thailand
PROTOOL, distributor of high quality TOGU brand measuring tools, available in a variety of sizes. Various types Answer all your needs You can order online with PROTOOL. You can get it at Line OA @protoolgauge , 02-123-3822 and 085-660-5531. We are ready to deliver all over Thailand.
